Exotek AVX, XX and EXO103 available @ Quantum!

EXOTEK AVX
Product No: EXO-1139
High performance multi adjustment ULTRA NARROW lipo chassis for uncompromising balanced lipo performance for the Robitronic Avid V2.
- ONLY 90MM WIDE ACROSS THE REAR MAIN CHASSIS.
- 2.25mm thick for improved flex all while reducing overall center of gravity over the stock chassis.
- 2 side ways battery mounting positions.
- 3 piece battery cups insures tweak free secure battery mounting.
- American made quasi weave 2.25mm thick carbon fiber.
- Narrowed chassis for less chassis scrub through corners for better corner speed.
- Includes special battery strapping tape tabs.
- Multi adjusting center battery rail to custom fit your battery for a perfect snug fit.
- Accepts 7.4 volt flat bottom cased lipos such as Thunder Power, Orion or similar sized lipo batteries



EXOTEK XX
Product No: EXO-1138
High performance multi adjustment ULTRA NARROW lipo chassis for uncompromising balanced lipo performance for the Hotbodies TCX.
- ONLY 90MM WIDE ACROSS THE REAR MAIN CHASSIS.
- 2.25mm thick for improved flex all while reducing overall center of gravity over the stock chassis.
- 2 side ways battery mounting positions.
- 3 piece battery cups insures tweak free secure battery mounting.
- American made quasi weave 2.25mm thick carbon fiber.
- Narrowed chassis for less chassis scrub through corners for better corner speed.
- Includes special battery strapping tape tabs.
- Multi adjusting center battery rail to custom fit your battery for a perfect snug fit.
- Accepts 7.4 volt flat bottom cased lipos such as Thunder Power, Orion or similar sized lipo batteries

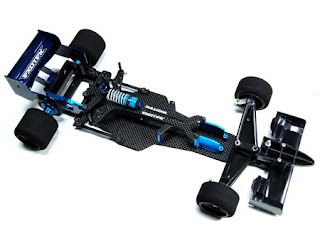

EXOTEK EXO103
Product No: EXO-1135
For Tamiya F103, High performance, lightweight chassis based on the highly successful EXO104 link chassis. Inline battery mounting, 265mm wheelbase and a floating rear pod all translates into a potent platform for high power applications
Using actual components from the World Champion Yokomo 1/12th we have re-engineered the rear pod into a 2 link floating rear pod for superior rear traction and stability.
- Includes a VCS through shaft center oil shock to perform tweak free side dampening.
- Carbon fiber 1 piece top deck to reduce tweak and allows just enough flex to maintain proper traction.
- Top deck accepts Tamiya shock or lightweight optional VCS shock.
- Secure battery mounting system also accepts bullet plug type batteries.
- 100% American made quasi weave 2.3mm thick carbon fiber components.
- 265mm wheel base- optimized for inline battery position.
- Narrow chassis to reduce chassis scrub for better handling and more corner speeds yet plenty of room to mount electronics.
- Pan car type tweak screw and side spring adjustment feature to properly balance the rear pod and provide super smooth suspension action.
- Includes blue anodized battery posts, spacers and necessary alloy steel hardware.
- Uses stock F103 or F104 bodies. Modular rear body mounts lines up with the body dimples of either type bodies
- Tamiya F103 with 2 piece servo mount is required.


For more information, please visit www.quantumracing-rc.com or contact us at enquiries@quantumracing-rc.com
