Muchmore Hybrid Touch DUO AC/DC Charger/Discharger now available @ Quantum!


Muchmore Hybrid Touch DUO AC/DC Charger is a ground breaking charger features max 400 watts of power via dual 200 + 200watt circuits allowing for simultaneous charging of two batteries up to each 20amps when you use with DC power supply.

Muchmore Hybrid Touch AC/DC DUO Charger
MM-MM-HYTD


HIGH SENSITIVITY ELECTRONIC 4.3inch FULL TOUCH COLOR SCREEN

New designed touch screen with full color. It can be accessed instantly each menus with intuitive function. Efficient battery management function helps manage the battery in the best condition even during the race, as well as general driving.

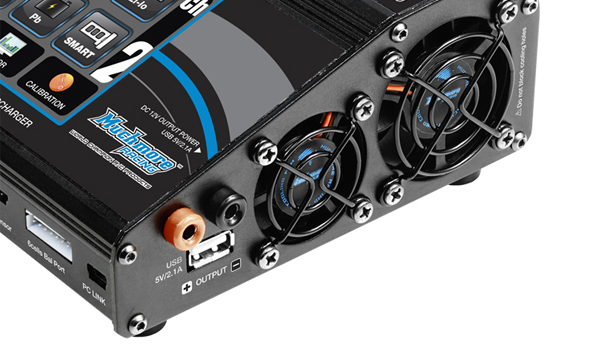

DC 12V OUTPUT / USB CHARGE PORT EUROPEAN STYLE OUTPUT

This product has a built-in power supply. You can supply power to LED stand, Tire warmer and etc. And USB charge port is built-in, you can charging to smart phone and etc.



IC TEMPERATURE COOLING FAN

IC controlled cooling fans protect from high temperature of device.

BATTERY MONITOR

Battery monitor is to check the resistance and cell deviation of each battery.

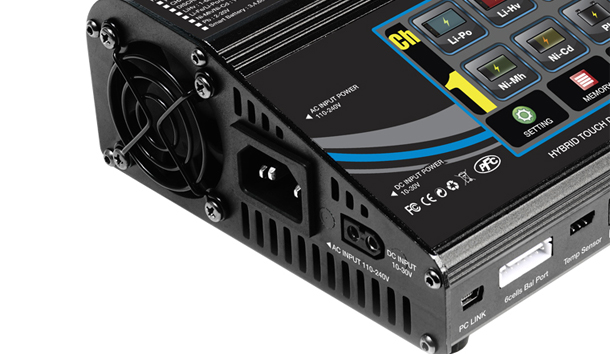

BUILT-IN AC/DC INPUT PORT

Hybrid Touch DUO charger attached built-in DC power supply.
You can use input AC110~240V or DC 10~30V.

DISPLAY 4.3inch Full Touch Screen
LCD BATTERIES Li-Po / Li-Hv / Li-Fe / Li-Ion : 1-6cells, Ni-Cd / Ni-Mh : 1-15cells, Pb(Lead Acid) : 2-20V, Smart Battery ( TYPE-I / II / III )
SUB FUNCTION Balancer, IR Test
MEMORY 8 Memory
Ext. TEMP SOCKET Futaba 3P Socket
DIMENSIONS 195 x 143 x 40mm (L x W x H)
WEIGHT 1,168g
CHARGE POWER 150W x 2 (AC input) / 200W x 2 (DC input)
CHARGE CURRENT 0.1-20A x 2
BALANCING CURRENT 0.5A / cell
DISCHARGE POWER 25W x 2
DISCHARGE CURRENT 0.1-5.0A x 2
SMRAT BATTERY 5-27V / 0.1-20A
AC INPUT 110-240V
DC INPUT 10-30V
USB OUTPUT 5V / 2.1A

For more information, please visit www.quantumracing-rc.com or contact us at enquiries@quantumracing-rc.com
